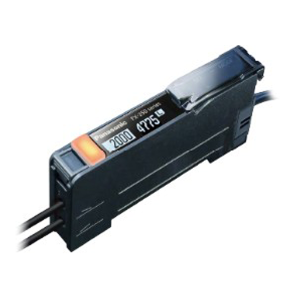

FX-250 Series Fiber Amplifier
- Easy-to-read OLED display
- Large output indicator
- Fast response time of 35μs
Easy to use
Improved dual digital display
The improved display is very easy to read thanks to the high contrast and the sharp contours of numbers and letters. The dual display shows both the threshold value and the current incident light intensity.
The display is able to display characters just like printed text, so the names of setting options are much easier to understand.
Smart limit teaching
Limit teaching can be done with two pushes of a button even if the emitted light is so strong it causes incident light saturation. No need to adjust the amount of light emitted before teaching.
Eco-friendly
3 ECO mode settings available
By default, the digital display dims when no button is pressed for about 20 seconds. It is possible to completely switch off either the digital display or both the digital display and the output indicator when no button is pressed for about 2 minutes.
Stable light emission thanks to auto power control (APC) and four-element LED
The built-in APC circuit stabilizes the light emission, which tends to fluctuate for a short time when the power is switched on or when there are sudden changes in temperature. In addition, the LED has four instead of the conventional three light-emitting elements, which ensures stable light emission even over long periods of time.
